MS-MG12
OPERATING CONDITIONS
Temperature: -20°C to +200°C
Pressure: Up to 12 bar, 174 psi
Speed: Up to 10m/s, 2000 fpm
MATERIALS AVAILABLE
Rotary Face: Carbon or SiC
Stationary Seat: SiC
Elastomers: Nitrile, Viton or EPDM
Metal Parts: 304SS or 316SS
STATIONARY SEATS
Standard Seat: G6, G60
Alternative Seat: G4, G9

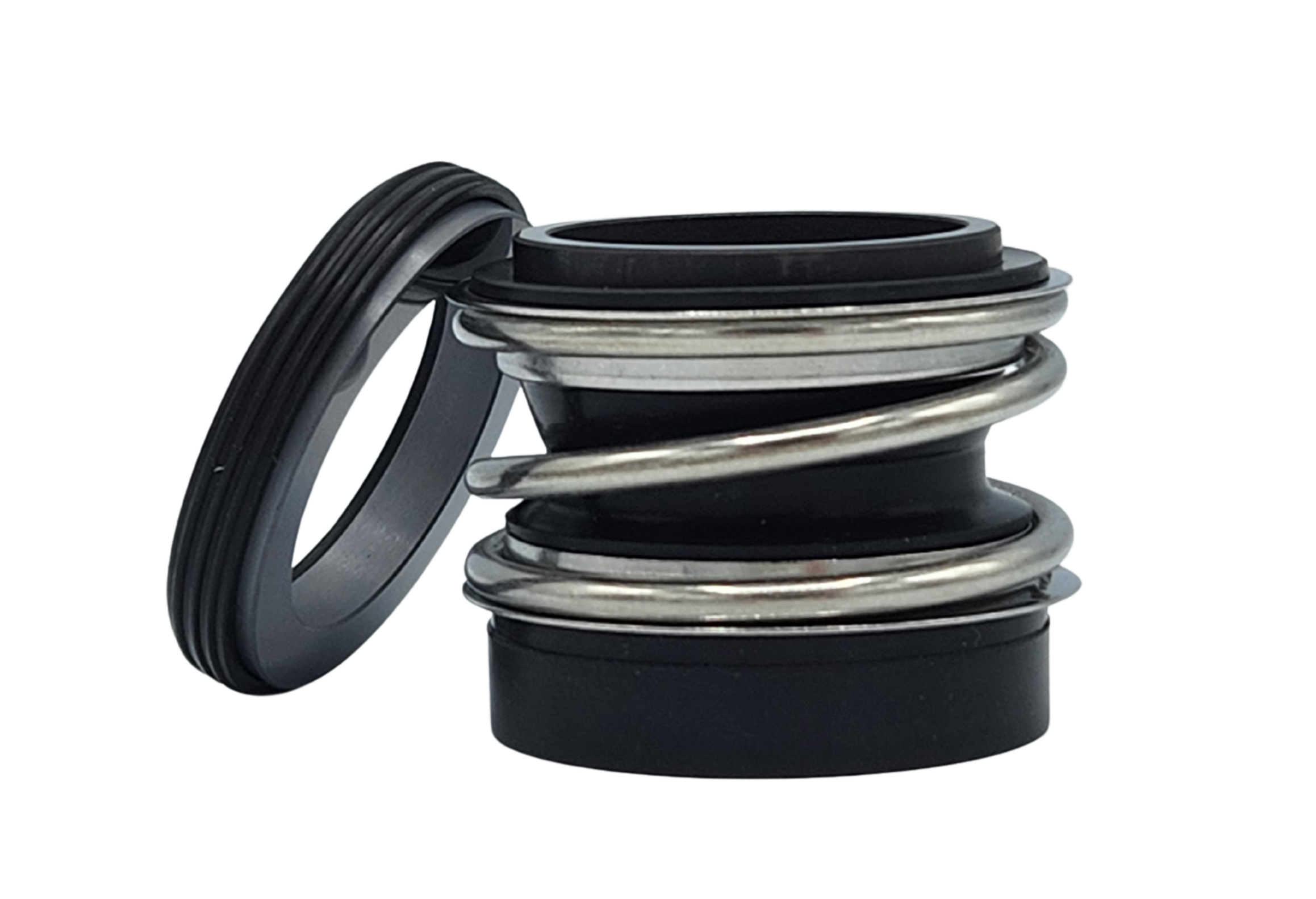

The MS-MG12 is a robust Rubber Bellows Mechanical Seal designed for reliable performance in demanding applications. Driven by an elastomer bellows, it offers effective friction drive while providing full length shaft protection. Its flexible design accommodates substantial axial movement, making it highly tolerant to shaft deflections. The MS-MG12 is particularly well suited for applications involving media with solid particles, ensuring dependable sealing performance in challenging operating conditions.
EQUIVALENT TO
B012/B012S/B012SL/B012SS
192
MG12
